8150 Series

MobileMule™ 9 Channel Mobile DVR with GPS Tracking and Live Video Options (Hard Drive)

SKU

8150 Series

FEATURED PRODUCT OF THE MONTH

MobileMule™ 9 Channel Mobile DVR with GPS Tracking and Live Video Options (Hard Drive)

  • Product Highlights
    • Connect & record up to (9) nine cameras simultaneously
    • Built-in GPS - records location and driving route
    • Free Gateway Hosting - No Recurring Fees
    • Records To Lockable 1TB Western Digital Hard Drive (Included)
    • Built-in Ethernet Port - Easily Connect Forward Facing IP Camera
    • Military grade vibration and shock rating (MIL-STD-810G)
    • Click here to view our DVR cameras
  • Product Details

    The MobileMule™ 8150 is an nine channel Mobile DVR which can connect and record simultaneously up to 9 cameras (8 regular/AHD cameras and 1 forward facing IP camera). Footage records onto an included Western Digital 1TB hard drive with backup recording onto 1 SD card (sold separately) with a total storage capacity of 128GB. With built-in GPS, this high capacity DVR will record the vehicle's location and driving route as well as camera footage to provide the full picture from what's happening on the road. Perfect for fleets of trucks and buses, The MobileMule™ 8150 is vibration-proof and combines powerful functions together with a stable performance.

    Select the GPS+WiFi option to upgrade to live video remote viewing. This allows the DVR to connect to a WiFi hotspot in your vehicle. This model is compatible with jetpacks from all major carriers. Perfect for fleet tracking (can be used as a GPS tracker) and fleet management this DVR allows you to easily view and download footage even while the vehicle is on the road! Click here to learn more about connecting to a WiFi network.

    The GPS+WiFi+4G option allows the user to use a SIM Card for live remote viewing. This model can also be connected to a WiFi hotspot. Click here to learn more about connecting to a 3G/4G network.

    Note: A Western Digital 2.5" 1TB Hard Drive is included. This is the only drive compatible with this system.
    Note: To manually transfer footage off the SATA Hard Drive, use the RVS-SATA-USB Adaptor
    Note: Software is only compatible with Windows Computers.

  • Product Dimensions

    Control Module: (with bracket): 7.2" (H) x 7.5" (L) x 2.5" (D)

  • Spec Sheet & Manual
  • Instructional Videos
  • Software & Support

    Click here to download the Desktop Live View Software (Windows).

    Click here to download the Desktop Footage Player (Windows).

    Click here to download PDF of Footage Player Manual.

    Click here to view the Browser Live View Software.

    HDD To USB
    Click here to download HDD Software
    Click here to download HDD Manual

    Firmware
    Please call DVR support for any firmware updates.

    DVR Support
    Email: dvr@rearviewsafety.com
    Phone: (800) 764-1028 Ext. 387

  • 1 Year
    Warranty
  • Same Day
    Shipping
  • Buy & Try
    30 Day Guarantee
  • Lifetime
    Tech Support
  • Satisfaction
    is 100% Guaranteed
  • Private and
    100% Secure
  • TS 16946:2009 &
    ISO 9001:2008 Certified
  • 26 Point
    Quality Assurance
Availability:
In stock
Only %1 left
As low as $1,611.54

item options

Need this item fast? Orders placed before 2:00pm EST Mon-Thu (1:30pm EST Fri) will usually ship same day.

HAVE A FLEET OF VEHICLES?

REQUEST A DEMO
  • Product Highlights
    • Connect & record up to (9) nine cameras simultaneously
    • Built-in GPS - records location and driving route
    • Free Gateway Hosting - No Recurring Fees
    • Records To Lockable 1TB Western Digital Hard Drive (Included)
    • Built-in Ethernet Port - Easily Connect Forward Facing IP Camera
    • Military grade vibration and shock rating (MIL-STD-810G)
    • Click here to view our DVR cameras
  • Product Details

    The MobileMule™ 8150 is an nine channel Mobile DVR which can connect and record simultaneously up to 9 cameras (8 regular/AHD cameras and 1 forward facing IP camera). Footage records onto an included Western Digital 1TB hard drive with backup recording onto 1 SD card (sold separately) with a total storage capacity of 128GB. With built-in GPS, this high capacity DVR will record the vehicle's location and driving route as well as camera footage to provide the full picture from what's happening on the road. Perfect for fleets of trucks and buses, The MobileMule™ 8150 is vibration-proof and combines powerful functions together with a stable performance.

    Select the GPS+WiFi option to upgrade to live video remote viewing. This allows the DVR to connect to a WiFi hotspot in your vehicle. This model is compatible with jetpacks from all major carriers. Perfect for fleet tracking (can be used as a GPS tracker) and fleet management this DVR allows you to easily view and download footage even while the vehicle is on the road! Click here to learn more about connecting to a WiFi network.

    The GPS+WiFi+4G option allows the user to use a SIM Card for live remote viewing. This model can also be connected to a WiFi hotspot. Click here to learn more about connecting to a 3G/4G network.

    Note: A Western Digital 2.5" 1TB Hard Drive is included. This is the only drive compatible with this system.
    Note: To manually transfer footage off the SATA Hard Drive, use the RVS-SATA-USB Adaptor
    Note: Software is only compatible with Windows Computers.

  • Product Dimensions

    Control Module: (with bracket): 7.2" (H) x 7.5" (L) x 2.5" (D)

  • Spec Sheet & Manual
  • Instructional Videos
  • Software & Support

    Click here to download the Desktop Live View Software (Windows).

    Click here to download the Desktop Footage Player (Windows).

    Click here to download PDF of Footage Player Manual.

    Click here to view the Browser Live View Software.

    HDD To USB
    Click here to download HDD Software
    Click here to download HDD Manual

    Firmware
    Please call DVR support for any firmware updates.

    DVR Support
    Email: dvr@rearviewsafety.com
    Phone: (800) 764-1028 Ext. 387

  • 1 Year
    Warranty
  • Same Day
    Shipping
  • Buy & Try
    30 Day Guarantee
  • Lifetime
    Tech Support
  • Satisfaction
    is 100% Guaranteed
  • Private and
    100% Secure
  • TS 16946:2009 &
    ISO 9001:2008 Certified
  • 26 Point
    Quality Assurance
rearviewsafety
rearviewsafety
  • All components in our wired systems can be mixed and matched. Any camera can go with any monitor and vice versa for no extra cost. Call our vehicle specialists at (800) 764-1028 to place a custom order!

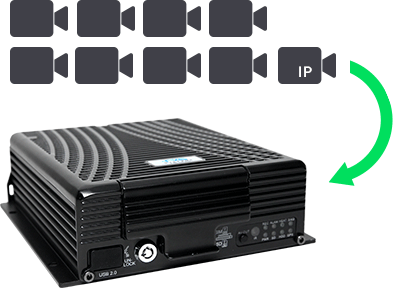

  • MobileMule™ Mobile DVR Cameras

    Supports Nine
    HD Cameras

    8 x 960p AHD/960H/D1/HD1/CIF
    1 x IPC (720p/1080p)

    MobileMule Mobile DVR Cameras
    MobileMule™ Mobile DVR Video Recording
  • MobileMule Mobile DVR Secure Recording Icon

    Secure Recording

    Comes included with a 1TB Western Digital hard drive - store weeks of footage at a time. Hard drive is locked
    and footage is password protected.

    Comes included with a 1TB Western Digital hard drive - store weeks of footage at a time. Hard drive is locked and footage is password protected.

  • MobileMule Mobile DVR Secure Recording Icon

    Backup Recording

    Records onto SD card (up to 128GB) in the case
    of a hard drive failure. This almost never happens,
    but if it does, we got your back.

    Records onto SD card (up to 128GB) in the case of a hard drive failure. This almost never happens, but if it does, we got your back.

    MobileMule Mobile DVR Backup Recording
    MobileMule Mobile DVR Backup Recording
  • MobileMule Mobile DVR Secure Recording Icon

    Loop Recording

    Records camera feeds continuously, looping
    over oldest recordings when storage is full.
    This means you'll always have the most recent
    recordings available.

    Records camera feeds continuously, looping over oldest recordings when storage is full. This means you'll always have the most recent recordings available.

    MobileMule Mobile DVR Loop Recording
    MobileMule Mobile DVR Loop Recording
  • never lose footage!

    Military grade vibration and shock rating (ML-STD-810G).

  • G-Sensor

    Recognizes sudden movements i.e. hard
    acceleration, sudden stops, speeding and
    impacts. Can set alerts to to keep these
    recordings as events.

    Recognizes sudden movements i.e. hard acceleration, sudden stops, speeding and impacts. Can set alerts to to keep these recordings as events.

  • IP Camera Ready

    IP Camera Ready

    Equipped with an Ethernet Port to connect an IP camera.

    Equipped with an Ethernet Port to connect an IP camera.

  • Events

    Can trigger certain recorded footage as events
    to be overwrite protected. These files are stored
    separately and include 20 seconds prior to event
    and 20 seconds after event.

    Can trigger certain recorded footage as events to be overwrite protected. These files are stored separately and include 20 seconds prior to event and 20 seconds after event.

  • Alarm Inputs

    Manually create alarms so that associated
    footage is overwrite protected.

    Manually create alarms so that associated footage is overwrite protected.

  • GPS Tracking

    Record vehicle speed and location together
    with footage as well as the route the
    vehicle has driven.

    Record vehicle speed and location together with footage as well as the route the vehicle has driven.

  • Delay Power Off

    Records footage while vehicle is off – up to 24 hours (draws power from vehicle’s battery).

    8 second power off delay– protects data for 8 seconds if DVR loses power
    completely (draws power from built-in capacitors).

    8 second power off delay– protects data for 8 seconds if DVR loses power completely (draws power from built-in capacitors).

  • Software Features

    - Google Maps Integration
    - Multi Vehicle Live View
    - Breadcrumb Tracking

    Google Maps Integration – see info on a map you’re used to
    Multi Vehicle Live View – view up to 100 live streams at the same time
    Breadcrumb Tracking – view route over a set time period

  • 1 x 9 Channel Mobile DVR
  • 1 x Remote Control
  • 1 x GPS Module
  • 1 x Power Harness
  • 1 x Trigger Wire Harness
  • 2 x Monitor Harnesses
  • 4 x Adaptor Cables
  • 8 x Camera Cables
  • 2 x Lock Keys
  • 1 x 1TB Hard Drive
  • 1 x Allen Wrench and Screw
  • 1 x Lock Box
System Specs
  • LanguageEnglish / Chinese
  • Operation InterfaceGraphical User Interface (OSD menu)
  • Password Security2 Levels: Administrator & User
  • Video InputSupports 9 channels - 8 CIF/HD1/D1/960H / 720P AHD inputs & 1 Ethernet Port For Forward Facing IP Camera
  • Video Output2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port)
  • Video DisplaySingle picture, 1~4 pictures
  • Signal SystemPAL / NTSC (PAL@200 frame 720P/sec; NTSC@240 frame 720P/sec)
  • Image CompressionH.264 Main profile
  • Audio Input8 Channels
  • Audio Output2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port)
  • Record FormatSynchronized A/V recording
  • Image ResolutionCIF / HD1 / D1 / 960H / 720P optional
  • Video CodingISO14496-10 Industry Standard
  • Video BitrateCIF: 128Kbps ~ 1536Kbps - HD1/D1: 400Kbps ~ 2048Kbps - 960H: 400Kbps ~ 2048Kbps - 720P: 400Kbps ~ 4096Kbps
  • Audio Bit Rate40Kbps
  • StorageUp to 1TB HDD/SSD and 1 SD card for backup
  • Alarm Input8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
  • Alarm Output1 Channel, 12V output
  • RS485 Port1 Port for PTZ control or Data Device usage
  • RS232 Port2 Port for communication or data usage
  • RJ45 Network1 Port of RJ45, For connection to LAN or testing
  • USB2 Ports for USB 2.0, the front panel one to download video files & upgrade firmware; the rear panel one is optional
  • GPSInternal GPS module. Real-time geographic coordinates, speed information
  • G-SensorSupports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
  • PC PlaybackA/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
  • Upgrade OptionsUpgrade through the front USB 2.0 or remotely via CMS/IVMS platform
  • CMS/IVMSWireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms
  • Voltage Input8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
  • Voltage Output12V(+/-0.2V) Max 3A
  • ACC Detection≤4V (Power Off) / ≥5V (Power On)
  • Video Input Resistance 75Ω
  • Video Output Voltage2VP-P CVBS output analog signal, screen input requires 75Ω resistance
  • I / O Port5V (High Voltage Trigger)
  • Operational Temperature-40℃ ~ 80℃
  • Dimensions192x184x61mm
Customer Questions
No Questions
Did you find what you were looking for?

Auto Iris Sensor

Senses ambient light and automatically adjusts infra-red strength based on the ambient light.

Display Contrast/Contrast Ratio

The ratio of the brightest color (white) to the darkest color (black) that the system is capable of producing. A high contrast ratio is a desired aspect of any display.

Display Format/Display Aspect Ratio

The proportional comparison between a display’s width and height. It is expressed as two numbers separated by a colon. Common aspect ratios for displays are 4:3, 16:9, and 21:9. 16:9 is the international standard format for Full HD.

Dot Pitch

A dot pitch measures the maximum sharpness of a displayed image. Usually measured in millimeters (mm), a smaller number means a sharper image.

Dot Resolution

Dots are elements that make up an image. The higher the dot resolution, the higher quality the image.

Event Mode

Video recording mode which causes footage to be overwrite protected. Event mode is usually triggered with unusual vehicle movement or sudden impact.

FPS

Frames per second (FPS) is a measurement of how many unique consecutive images a camera can handle every second.

G-Sensor

Measures impact or sudden changes in velocities. Once the G-Sensor is activated, event mode automatically begins.

Gamma Correction

Corrects colors on your display.

H.264

A style of video compression that allows for the greatest video quality with the smallest storage space.

IP Rating

The IP rating measures protection against solid and liquid objects. The larger the number, the higher the rating. An IP69K rating is the highest rating available, meaning that the system is completely weatherproof.

Infra-Red Illuminator

Infra-red lights are for night vision. Infra-reds emit light which the human eye cannot detect but cameras can. This greatly increases visibility in zero or low light conditions without an actual visible light source. Many of our cameras are equipped with infra-red lights.

Loop Recording

Video recording mode where after video storage is full, the camera will seamlessly loop over and begin recording over the oldest footage.

Mobile DVR

A recording device used to record video footage. DVR's are useful for fleet managers because they provide footage of accidents and information on vehicle's whereabouts and driving routes.

Motion Detection

A feature that automatically records before, during and after an impact while in parking mode. This way the driver has footage from an accident, even when they’re away from their car.

Multiplexer

The control unit or "brain" of the system. The multiplexer powers the system, receives all cameras feeds and sends them to the monitor. The multiplexer is connected straight to the fuse box and has a power capacity of 12-24 volts.

NTSC

National Television System Committee (NTSC) is a video system that transmits 30 frames per second (FPS).

Necessary/Usable Illumination

Measures how much ambient light (measure in lux) is needed to view an image. If your system has infra-red illuminators, 0 lux is needed.

OEM

Original Equipment Manufacturer (OEM) refers to equipment that was installed in a vehicle when it was manufactured. OEM style is an installation with a clean, factory look.

PAL

Phase Alternation by Line (PAL) is a video system that transmits 25 frames per second (FPS).

Picture Elements

Picture elements is another way to write pixel. A pixel is the smallest addressable element in digital imaging. The more pixels, the higher the quality image.

Power Supply

Most of our systems may be powered by 12 or 24 volt batteries, meaning they can be powered by the vehicle battery. DC stands for direct current.

S/N Ratio (Signal-to-Noise Ratio)

Compares the level of desired signal to the level of background noise. A ratio above 1:1 (greater than 0dB) indicates more signal than noise.

Shock

A physical or mechanical shock is a sudden acceleration caused by outside factors such as impact. It is usually measured in G units, which represent multiples of the acceleration of gravity.

TFT LCD

A high quality monitor used in appliances such as television sets, computer monitors and mobile phones. A TFT LCD monitor improves image qualities including contrast and sharpness. These displays only use up to half the power of a traditional monitor.

TV Lines

The maximum number of alternating light and dark vertical lines that can be resolved per picture height. The higher the number, the better the image quality

Trigger

An automatic action that occurs when a specific operation occurs. An example is a rear camera view displaying when a car is put into reverse.

Vibration

A mechanical phenomenon where fluctuations occur about an equilibrium point. It is usually measured in g units, which represent multiples of the acceleration of gravity.

map

NEED HELP WITH INSTALLATION?

CLICK BELOW TO SEE RECOMMENDED INSTALLATION CENTERS IN YOUR AREA:

FIND INSTALLER
cic

INSTALLATION QUESTIONS?
GIVE OUR TECH TEAM A CALL AT (800) 764-1028.

Please Note: our tech team will help with questions regarding our systems but may not have the answer with regards to installation for your specific vehicle.
For vehicle specific questions, refer to your vehicle's user manual or contact your dealer.

Do you provide instruction manuals?
We do! Click here to view all of our product manuals.

Do the backup camera systems work at night?
Yes - most of our backup cameras come with infra-red lights and all come with excellent night vision.

Do the camera systems come with everything needed to install?
Yes, all components necessary for installation are included in our camera system packages.

Will I be able to install a camera system myself?
Many people do have the handiness to install our systems without having to hire assistance. Otherwise we recommend professional installation as they can guarantee that the system is installed correctly. Click here to search for a recommended installer in your area.

How do the systems receive power?
Most systems need just 12V power and they receive this either from the cigarette lighter or straight from the vehicle's fuse box.

Do the systems function properly in rain and bad weather?
All of our backup cameras are completely waterproof and will function perfectly in all weather conditions.

Can the camera systems remain on to view continuously while you drive?
Yes, they can. You can wire the systems to stay on as long as the vehicle is on or to come on only in reverse.

With a quad view system, do you need to connect all trigger wires to see all camera views?
No, trigger wires do not need to be powered to see camera views. Simply navigate to the preset quad view option from the monitor menu.

Can I customize a system?
Yes, most of our systems are customizable and all components in our wired systrems are interchangeable. Custom orders can be placed at (800) 764-1028.

What is the lead time on orders?
Most orders will ship on the same day. Our shipping cut-off time is 2:00pm EST Mon-Thurs and 1:30pm on Friday.

Does Rear View Safety offer pricing for dealers and fleets?
We most definitely do! You can apply for the dealer program here and fleet program here.

Does Rear View Safety only sell backup cameras?
No, we carry a multitude of vehicle safety solutions including Dash Cameras, Backup Sensors, Mobile DVR's and many other safety accessories.

Does Rear View Safety ship internationally?
Yes, we ship to any and every place in the world! (where shipping is available)

What methods of payment do you accept?
We accept all major credit cards as well as Paypal.

Does Rear View Safety offer a warranty?
Yes, all of our products come with a one year warranty. An extended two year warranty is also available for purchase.

When will my order ship?
FedEx Ground Shipping, Next Day, 2-Day, and Express Saver services placed before 2 PM will be shipped out the same day. Free shipping will ship within 1-5 business days. More info here.

How do I place a tax exempt order?
On-line orders are NOT tax exempt. If a customer wants to place a tax exempt order, they will need to send us the tax certificate BEFORE order is placed; after which a regular account will be set up for them, and then their order must be called in. An online order can not be retroactively refunded AFTER it's been placed.

  • MobileMule™ Mobile DVR Cameras

    Supports Nine
    HD Cameras

    8 x 960p AHD/960H/D1/HD1/CIF
    1 x IPC (720p/1080p)

    MobileMule Mobile DVR Cameras
    MobileMule™ Mobile DVR Video Recording
  • MobileMule Mobile DVR Secure Recording Icon

    Secure Recording

    Comes included with a 1TB Western Digital hard drive - store weeks of footage at a time. Hard drive is locked
    and footage is password protected.

    Comes included with a 1TB Western Digital hard drive - store weeks of footage at a time. Hard drive is locked and footage is password protected.

  • MobileMule Mobile DVR Secure Recording Icon

    Backup Recording

    Records onto SD card (up to 128GB) in the case
    of a hard drive failure. This almost never happens,
    but if it does, we got your back.

    Records onto SD card (up to 128GB) in the case of a hard drive failure. This almost never happens, but if it does, we got your back.

    MobileMule Mobile DVR Backup Recording
    MobileMule Mobile DVR Backup Recording
  • MobileMule Mobile DVR Secure Recording Icon

    Loop Recording

    Records camera feeds continuously, looping
    over oldest recordings when storage is full.
    This means you'll always have the most recent
    recordings available.

    Records camera feeds continuously, looping over oldest recordings when storage is full. This means you'll always have the most recent recordings available.

    MobileMule Mobile DVR Loop Recording
    MobileMule Mobile DVR Loop Recording
  • never lose footage!

    Military grade vibration and shock rating (ML-STD-810G).

  • G-Sensor

    Recognizes sudden movements i.e. hard
    acceleration, sudden stops, speeding and
    impacts. Can set alerts to to keep these
    recordings as events.

    Recognizes sudden movements i.e. hard acceleration, sudden stops, speeding and impacts. Can set alerts to to keep these recordings as events.

  • IP Camera Ready

    IP Camera Ready

    Equipped with an Ethernet Port to connect an IP camera.

    Equipped with an Ethernet Port to connect an IP camera.

  • Events

    Can trigger certain recorded footage as events
    to be overwrite protected. These files are stored
    separately and include 20 seconds prior to event
    and 20 seconds after event.

    Can trigger certain recorded footage as events to be overwrite protected. These files are stored separately and include 20 seconds prior to event and 20 seconds after event.

  • Alarm Inputs

    Manually create alarms so that associated
    footage is overwrite protected.

    Manually create alarms so that associated footage is overwrite protected.

  • GPS Tracking

    Record vehicle speed and location together
    with footage as well as the route the
    vehicle has driven.

    Record vehicle speed and location together with footage as well as the route the vehicle has driven.

  • Delay Power Off

    Records footage while vehicle is off – up to 24 hours (draws power from vehicle’s battery).

    8 second power off delay– protects data for 8 seconds if DVR loses power
    completely (draws power from built-in capacitors).

    8 second power off delay– protects data for 8 seconds if DVR loses power completely (draws power from built-in capacitors).

  • Software Features

    - Google Maps Integration
    - Multi Vehicle Live View
    - Breadcrumb Tracking

    Google Maps Integration – see info on a map you’re used to
    Multi Vehicle Live View – view up to 100 live streams at the same time
    Breadcrumb Tracking – view route over a set time period

  • 1 x 9 Channel Mobile DVR
  • 1 x Remote Control
  • 1 x GPS Module
  • 1 x Power Harness
  • 1 x Trigger Wire Harness
  • 2 x Monitor Harnesses
  • 4 x Adaptor Cables
  • 8 x Camera Cables
  • 2 x Lock Keys
  • 1 x 1TB Hard Drive
  • 1 x Allen Wrench and Screw
  • 1 x Lock Box
System Specs
  • LanguageEnglish / Chinese
  • Operation InterfaceGraphical User Interface (OSD menu)
  • Password Security2 Levels: Administrator & User
  • Video InputSupports 9 channels - 8 CIF/HD1/D1/960H / 720P AHD inputs & 1 Ethernet Port For Forward Facing IP Camera
  • Video Output2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port)
  • Video DisplaySingle picture, 1~4 pictures
  • Signal SystemPAL / NTSC (PAL@200 frame 720P/sec; NTSC@240 frame 720P/sec)
  • Image CompressionH.264 Main profile
  • Audio Input8 Channels
  • Audio Output2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port)
  • Record FormatSynchronized A/V recording
  • Image ResolutionCIF / HD1 / D1 / 960H / 720P optional
  • Video CodingISO14496-10 Industry Standard
  • Video BitrateCIF: 128Kbps ~ 1536Kbps - HD1/D1: 400Kbps ~ 2048Kbps - 960H: 400Kbps ~ 2048Kbps - 720P: 400Kbps ~ 4096Kbps
  • Audio Bit Rate40Kbps
  • StorageUp to 1TB HDD/SSD and 1 SD card for backup
  • Alarm Input8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
  • Alarm Output1 Channel, 12V output
  • RS485 Port1 Port for PTZ control or Data Device usage
  • RS232 Port2 Port for communication or data usage
  • RJ45 Network1 Port of RJ45, For connection to LAN or testing
  • USB2 Ports for USB 2.0, the front panel one to download video files & upgrade firmware; the rear panel one is optional
  • GPSInternal GPS module. Real-time geographic coordinates, speed information
  • G-SensorSupports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
  • PC PlaybackA/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
  • Upgrade OptionsUpgrade through the front USB 2.0 or remotely via CMS/IVMS platform
  • CMS/IVMSWireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms
  • Voltage Input8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
  • Voltage Output12V(+/-0.2V) Max 3A
  • ACC Detection≤4V (Power Off) / ≥5V (Power On)
  • Video Input Resistance 75Ω
  • Video Output Voltage2VP-P CVBS output analog signal, screen input requires 75Ω resistance
  • I / O Port5V (High Voltage Trigger)
  • Operational Temperature-40℃ ~ 80℃
  • Dimensions192x184x61mm

Auto Iris Sensor

Senses ambient light and automatically adjusts infra-red strength based on the ambient light.

Display Contrast/Contrast Ratio

The ratio of the brightest color (white) to the darkest color (black) that the system is capable of producing. A high contrast ratio is a desired aspect of any display.

Display Format/Display Aspect Ratio

The proportional comparison between a display’s width and height. It is expressed as two numbers separated by a colon. Common aspect ratios for displays are 4:3, 16:9, and 21:9. 16:9 is the international standard format for Full HD.

Dot Pitch

A dot pitch measures the maximum sharpness of a displayed image. Usually measured in millimeters (mm), a smaller number means a sharper image.

Dot Resolution

Dots are elements that make up an image. The higher the dot resolution, the higher quality the image.

Event Mode

Video recording mode which causes footage to be overwrite protected. Event mode is usually triggered with unusual vehicle movement or sudden impact.

FPS

Frames per second (FPS) is a measurement of how many unique consecutive images a camera can handle every second.

G-Sensor

Measures impact or sudden changes in velocities. Once the G-Sensor is activated, event mode automatically begins.

Gamma Correction

Corrects colors on your display.

H.264

A style of video compression that allows for the greatest video quality with the smallest storage space.

IP Rating

The IP rating measures protection against solid and liquid objects. The larger the number, the higher the rating. An IP69K rating is the highest rating available, meaning that the system is completely weatherproof.

Infra-Red Illuminator

Infra-red lights are for night vision. Infra-reds emit light which the human eye cannot detect but cameras can. This greatly increases visibility in zero or low light conditions without an actual visible light source. Many of our cameras are equipped with infra-red lights.

Loop Recording

Video recording mode where after video storage is full, the camera will seamlessly loop over and begin recording over the oldest footage.

Mobile DVR

A recording device used to record video footage. DVR's are useful for fleet managers because they provide footage of accidents and information on vehicle's whereabouts and driving routes.

Motion Detection

A feature that automatically records before, during and after an impact while in parking mode. This way the driver has footage from an accident, even when they’re away from their car.

Multiplexer

The control unit or "brain" of the system. The multiplexer powers the system, receives all cameras feeds and sends them to the monitor. The multiplexer is connected straight to the fuse box and has a power capacity of 12-24 volts.

NTSC

National Television System Committee (NTSC) is a video system that transmits 30 frames per second (FPS).

Necessary/Usable Illumination

Measures how much ambient light (measure in lux) is needed to view an image. If your system has infra-red illuminators, 0 lux is needed.

OEM

Original Equipment Manufacturer (OEM) refers to equipment that was installed in a vehicle when it was manufactured. OEM style is an installation with a clean, factory look.

PAL

Phase Alternation by Line (PAL) is a video system that transmits 25 frames per second (FPS).

Picture Elements

Picture elements is another way to write pixel. A pixel is the smallest addressable element in digital imaging. The more pixels, the higher the quality image.

Power Supply

Most of our systems may be powered by 12 or 24 volt batteries, meaning they can be powered by the vehicle battery. DC stands for direct current.

S/N Ratio (Signal-to-Noise Ratio)

Compares the level of desired signal to the level of background noise. A ratio above 1:1 (greater than 0dB) indicates more signal than noise.

Shock

A physical or mechanical shock is a sudden acceleration caused by outside factors such as impact. It is usually measured in G units, which represent multiples of the acceleration of gravity.

TFT LCD

A high quality monitor used in appliances such as television sets, computer monitors and mobile phones. A TFT LCD monitor improves image qualities including contrast and sharpness. These displays only use up to half the power of a traditional monitor.

TV Lines

The maximum number of alternating light and dark vertical lines that can be resolved per picture height. The higher the number, the better the image quality

Trigger

An automatic action that occurs when a specific operation occurs. An example is a rear camera view displaying when a car is put into reverse.

Vibration

A mechanical phenomenon where fluctuations occur about an equilibrium point. It is usually measured in g units, which represent multiples of the acceleration of gravity.

map

NEED HELP WITH INSTALLATION?

CLICK BELOW TO SEE RECOMMENDED INSTALLATION CENTERS IN YOUR AREA:

FIND INSTALLER
cic

INSTALLATION QUESTIONS?
GIVE OUR TECH TEAM A CALL AT (800) 764-1028.

Please Note: our tech team will help with questions regarding our systems but may not have the answer with regards to installation for your specific vehicle.
For vehicle specific questions, refer to your vehicle's user manual or contact your dealer.

Do you provide instruction manuals?
We do! Click here to view all of our product manuals.

Do the backup camera systems work at night?
Yes - most of our backup cameras come with infra-red lights and all come with excellent night vision.

Do the camera systems come with everything needed to install?
Yes, all components necessary for installation are included in our camera system packages.

Will I be able to install a camera system myself?
Many people do have the handiness to install our systems without having to hire assistance. Otherwise we recommend professional installation as they can guarantee that the system is installed correctly. Click here to search for a recommended installer in your area.

How do the systems receive power?
Most systems need just 12V power and they receive this either from the cigarette lighter or straight from the vehicle's fuse box.

Do the systems function properly in rain and bad weather?
All of our backup cameras are completely waterproof and will function perfectly in all weather conditions.

Can the camera systems remain on to view continuously while you drive?
Yes, they can. You can wire the systems to stay on as long as the vehicle is on or to come on only in reverse.

With a quad view system, do you need to connect all trigger wires to see all camera views?
No, trigger wires do not need to be powered to see camera views. Simply navigate to the preset quad view option from the monitor menu.

Can I customize a system?
Yes, most of our systems are customizable and all components in our wired systrems are interchangeable. Custom orders can be placed at (800) 764-1028.

What is the lead time on orders?
Most orders will ship on the same day. Our shipping cut-off time is 2:00pm EST Mon-Thurs and 1:30pm on Friday.

Does Rear View Safety offer pricing for dealers and fleets?
We most definitely do! You can apply for the dealer program here and fleet program here.

Does Rear View Safety only sell backup cameras?
No, we carry a multitude of vehicle safety solutions including Dash Cameras, Backup Sensors, Mobile DVR's and many other safety accessories.

Does Rear View Safety ship internationally?
Yes, we ship to any and every place in the world! (where shipping is available)

What methods of payment do you accept?
We accept all major credit cards as well as Paypal.

Does Rear View Safety offer a warranty?
Yes, all of our products come with a one year warranty. An extended two year warranty is also available for purchase.

When will my order ship?
FedEx Ground Shipping, Next Day, 2-Day, and Express Saver services placed before 2 PM will be shipped out the same day. Free shipping will ship within 1-5 business days. More info here.

How do I place a tax exempt order?
On-line orders are NOT tax exempt. If a customer wants to place a tax exempt order, they will need to send us the tax certificate BEFORE order is placed; after which a regular account will be set up for them, and then their order must be called in. An online order can not be retroactively refunded AFTER it's been placed.

The RVS Difference

  • Passionate
    about Safety

  • 1 Year
    Warranty

  • Lifetime
    Tech Support

  • Same Day
    Shipping

  • Satisfaction is
    100% Guaranteed

  • 30 Day
    Return Policy

  • Customizable
    Systems

  • Best
    value

  • fleet program

    fleet program

    Operating a fleet of vehicles is a large responsibility and we are sure that you will do everything to keep your drivers safe. Safe driving is our mission. Trust us to be your safety partners.

    learn more
  • Govt. Solutions

    OEM Solutions

    Nothing beats original manufacturer quality other than original manufacturer service - We’re proud to provide both! Rear View Safety provides enterprise level quality across all facets of our OEM process, from system customization to production.

    learn more
  • Govt. Solutions

    Government solutions

    Our top-notch manufacturing process is sure to satisfy Government standards of vehicle safety. See why we’re partnered with various government sectors and have become the “go to” for backup cameras.

    learn more
Copyright © 2007-2022 Rear View Safety, Inc. All Rights Reserved
