RVS-SenseVue

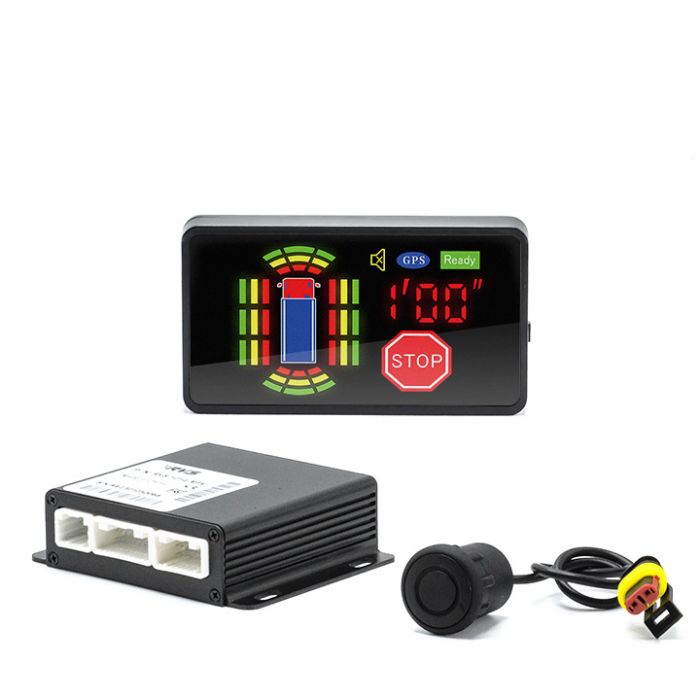

SenseVue™ Customizable Surround Sensor System w/ LED Display

SKU

RVS-SenseVue

FEATURED PRODUCT OF THE MONTH

SenseVue™ Customizable Surround Sensor System w/ LED Display

  • Product Highlights
    • Up to 16 IP69 waterproof-rated sensors
    • Object detection of up to 8ft away
    • Pre-programmed alert zones and dead zones that help avoid false alarms
    • LED display shows distance from objects in feet and inches, GPS connection status, and status alerts
    • LED's color-coded around-vehicle display features 3 detection zones that measure distance from objects (red, yellow, and green)
    • LED display’s integrated speaker gives audio alerts
  • Product Details

    SenseVue™ helps utility vehicle drivers perform incident-free, low-speed maneuvers around stationary obstacles.

    With customization at every level, operators can choose up to 16 sensors, set detection distances up to 8’ away, and program Alert/Warning/Danger zones to suitable ranges.

    The Speed Shut-off feature (also customizable) ensures function only when needed. SenseVue™ is compatible with specific RVS systems, including our inView 360° line.

    These IP69 waterproof-rated sensors can be installed externally on vehicles and function even in extreme weather.

  • Product Dimensions
    1 x ECU - 4.1”W x 3.1”D x 1.1”H
  • Spec Sheet & Manual
  • 1 Year
    Warranty
  • Same Day
    Shipping
  • Buy & Try
    30 Day Guarantee
  • Lifetime
    Tech Support
  • Satisfaction
    is 100% Guaranteed
  • Private and
    100% Secure
  • TS 16946:2009 &
    ISO 9001:2008 Certified
  • 26 Point
    Quality Assurance
Availability:
In stock

Call For Price

HAVE A FLEET OF VEHICLES?

REQUEST A DEMO
  • Product Highlights
    • Up to 16 IP69 waterproof-rated sensors
    • Object detection of up to 8ft away
    • Pre-programmed alert zones and dead zones that help avoid false alarms
    • LED display shows distance from objects in feet and inches, GPS connection status, and status alerts
    • LED's color-coded around-vehicle display features 3 detection zones that measure distance from objects (red, yellow, and green)
    • LED display’s integrated speaker gives audio alerts
  • Product Details

    SenseVue™ helps utility vehicle drivers perform incident-free, low-speed maneuvers around stationary obstacles.

    With customization at every level, operators can choose up to 16 sensors, set detection distances up to 8’ away, and program Alert/Warning/Danger zones to suitable ranges.

    The Speed Shut-off feature (also customizable) ensures function only when needed. SenseVue™ is compatible with specific RVS systems, including our inView 360° line.

    These IP69 waterproof-rated sensors can be installed externally on vehicles and function even in extreme weather.

  • Product Dimensions
    1 x ECU - 4.1”W x 3.1”D x 1.1”H
  • Spec Sheet & Manual
  • 1 Year
    Warranty
  • Same Day
    Shipping
  • Buy & Try
    30 Day Guarantee
  • Lifetime
    Tech Support
  • Satisfaction
    is 100% Guaranteed
  • Private and
    100% Secure
  • TS 16946:2009 &
    ISO 9001:2008 Certified
  • 26 Point
    Quality Assurance
rearviewsafety
rearviewsafety
  • All components in our wired systems can be mixed and matched. Any camera can go with any monitor and vice versa for no extra cost. Call our vehicle specialists at (800) 764-1028 to place a custom order!

RVS-1014

  • 1 x ECU
  • 14 x Ultrasonic Parking Sensors
  • 1 x LED Display
  • 1 x Extension Controller
  • 1 x LED Extension Harness
  • 1 x Display Mounting Bracket
  • 1 x GPS Module
  • 1 x Left Sensor Harness
  • 1 x Right Sensor Harness
  • 2 x Front/Rear Sensor Harnesses
  • 1 x 12’ Extension Harness
  • 1 x ECU Power Harness
  • 1 x ECU Sensor Input Harness
  • 1 x ECU Display Cable
ECU
  • Working VoltageDC 10V-36V
  • Rated Voltage/currentDC 24V/100mA
  • Power Consumption≤3W
  • Response Time100mS
  • Working Temps-40°C ~ +80°C
  • Storage Temps-45°C ~ +85°C
LED Display
  • Working VoltageDC 5V
  • Rated Voltage/CurrentDC 5V/450mA
  • Power Consumption≤2.5W
  • Working Temps-30°C ~ +80°C
  • Storage Temps-35°C ~ +85°C
  • Brightness>600 lumenr
  • Volume>85dB
Sensor Specs
  • Working VoltageDC 11V-16V
  • Rated Voltage/CurrentDC 12V/10mA
  • Working Temperature-40°C ~ +80°C
  • Storage Temperature-45°C ~ +85°C
  • Detection Distance0~8Ft
  • Working Frequency58KHz±1KHz
  • Horizontal detection angle110±10 degree
  • Vertical detection angle50±10 degree
  • Waterproof IP (sensor)IP69
  • Mounting LocationFront, rear, left, right
  • Hole SizeØ25±0.2mm
Customer Questions
No Questions
