2200 Series

2200 | 2 Channel AHD Mobile DVR

SKU

2200 Series

FEATURED PRODUCT OF THE MONTH

2200 | 2 Channel AHD Mobile DVR

  • Product Highlights
    • Highly functional mobile DVR for on-board recording
    • Can connect and record up to 720 AHD two cameras simultaneously
    • H.264 video compression
    • Records to SD card - 512GB storage capacity
  • Product Details

    This compact DVR can record up to two cameras and can output the video feeds to view on a monitor. It records in H.264 compression and is compatible with our 720 AHD cameras The footage records onto an SD card which can be lock protected to avoid tampering and the device can handle SD cards up to 512GB. It has loop recording and alarms that can be set to trigger the recording on and off.

    Note: This DVR is equipped with two 5 pin camera connections. In order to use an RCA camera, you need an RCA adaptor.

    Note: This DVR is compatible with either AHD cameras OR standard cameras (formats can not be combined).



  • Product Dimensions

    Mobile DVR: 4.5" W x 5.6" D x 1.3"H

  • Spec Sheet & Manual
  • 1 Year
    Warranty
  • Same Day
    Shipping
  • Buy & Try
    30 Day Guarantee
  • Lifetime
    Tech Support
  • Satisfaction
    is 100% Guaranteed
  • Private and
    100% Secure
  • TS 16946:2009 &
    ISO 9001:2008 Certified
  • 26 Point
    Quality Assurance
Availability:
In stock
Only %1 left
As low as $210.19

item options

Need this item fast? Orders placed before 2:00pm EST Mon-Thu (1:30pm EST Fri) will usually ship same day.

HAVE A FLEET OF VEHICLES?

REQUEST A DEMO
  • Product Highlights
    • Highly functional mobile DVR for on-board recording
    • Can connect and record up to 720 AHD two cameras simultaneously
    • H.264 video compression
    • Records to SD card - 512GB storage capacity
  • Product Details

    This compact DVR can record up to two cameras and can output the video feeds to view on a monitor. It records in H.264 compression and is compatible with our 720 AHD cameras The footage records onto an SD card which can be lock protected to avoid tampering and the device can handle SD cards up to 512GB. It has loop recording and alarms that can be set to trigger the recording on and off.

    Note: This DVR is equipped with two 5 pin camera connections. In order to use an RCA camera, you need an RCA adaptor.

    Note: This DVR is compatible with either AHD cameras OR standard cameras (formats can not be combined).



  • Product Dimensions

    Mobile DVR: 4.5" W x 5.6" D x 1.3"H

  • Spec Sheet & Manual
  • 1 Year
    Warranty
  • Same Day
    Shipping
  • Buy & Try
    30 Day Guarantee
  • Lifetime
    Tech Support
  • Satisfaction
    is 100% Guaranteed
  • Private and
    100% Secure
  • TS 16946:2009 &
    ISO 9001:2008 Certified
  • 26 Point
    Quality Assurance
rearviewsafety
rearviewsafety
  • All components in our wired systems can be mixed and matched. Any camera can go with any monitor and vice versa for no extra cost. Call our vehicle specialists at (800) 764-1028 to place a custom order!
  • Rear View Safety | 2 Channel Mobile DVR | 2200 Series

    2 Channels

    Connect and Record 2 Cameras Simultaneously.

    Rear View Safety | 2 Channel Mobile DVR | 2200 Series
    Rear View Safety | 2 Channel Mobile DVR | 2200 Series
  • MobileMule Mobile DVR Secure Recording Icon

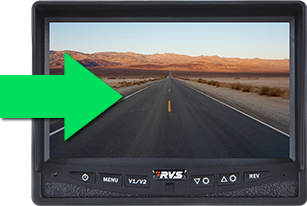

    Connect To Monitor

    DVR connects to (optional) monitor allowing driver to live-view camera feeds.

    DVR connects to (optional) monitor allowing driver to live-view camera feeds.

    MobileMule™ Mobile DVR Secure Recording
    MobileMule™ Mobile DVR Secure Recording
  • MobileMule Mobile DVR Secure Recording Icon

    AHD Compatible

    AHD compatibility allows for a maximum video resolution of 1280x720 for each camera channel.

    AHD compatibility allows for a maximum video resolution of 1280x720 for each camera channel.

    MobileMule Mobile DVR Loop Recording
    MobileMule Mobile DVR
  • MobileMule 2200

    Loop Recording

    Records camera feeds continuously, looping over oldest recording when storage is full.

    Records camera feeds continuously, looping over oldest recording when storage is full.

    MobileMule 2200
    MobileMule 2200
  • MobileMule 2200

    512 GB Storage Capacity

    Recorded footage is stored onto a micro SD card (not included), up to 512 GB capacity.

    MobileMule 2200
    MobileMule 2200
  • 1 x 2 Channel Mobile DVR
  • 1 x Remote Control
  • 1 x Hard Wire Harness
  • 1 x Cigarette Lighter Plug
  • 1 x Monitor Harness
  • 2 x Lock Keys
  • 1 x Software CD
System Specs
  • Main ProcessorHi3520DV300
  • Operating SystemEmbedded Linux OS
  • Operating LanguageChinese/English
  • Operating interfaceGUI, support mouse
  • Password securityUser password/Admin password
  • Video StandardPAL/NTSC
  • Video CompressionH.264
  • Image resolution720P/960H/D1/CIF
  • Playback Quality720P/960H/D1/CIF
  • Audio CompressionG.711
  • Video2-Channel aviation-type video
  • Audio2-Channel aviation-type audio
  • Recording ModeManual/Alarm
  • Video Bit RateFull frame 4096Mbps,6 classes image quality optional
  • Video OuputAircraft
  • Audio Bit Rate8KB/s
  • Storage MediaSD Card
  • Video InquiryInquiry by channel/Recording type
  • Local PlaybackPlayback by file
  • Upgrading ModeManual/Automatical/Remote
  • Upgrading MethodUSB disk/Wireless network/SD card
  • SD Card2 SDXC High speed card (up to 512GB)
  • USB Interface1 USB 2.0 (support U disk/mouse/upgrade)
  • Ignition Input1 ACC Signal
  • UART1 LVTTL Level
  • LED IndicationPWR/RUN
  • Disk Lock1
  • Debug Port1
  • Power Inputminimum 9.6V DC
  • Power Output5V 300mA
  • Power ConsumptionStandby 3mA
  • Maximum Consumption 15W @12V1.5A @24V 0.7A
  • Working Temperature-25℃ ~ 80℃/RH 95 Max
  • Storage720P1G/h/channel / 960H 750M/h/channel

DVR Storage Chart
