CG-1B47DX
Backup Camera System with Waterproof Quad View Monitor
Vehicle Safety. The way YOU want it.
CG-1B47DX
Backup Camera System with Waterproof Quad View Monitor
-
Product Highlights
- 7" TFT LCD Quad Digital Color Display
- Completely Waterproof System - IP69K
- 130° Ultra Wide Viewing Angle
- 18 Infra-red Lights - 50ft of Night Vision
- Touch Screen Display
-
Product Details
This amazing waterproof backup camera system is complete with a 7" QUAD DIGITAL TFT-LCD monitor with a touch screen display which is completely waterproof with an IP69K rating and is suited for any application where the monitor is exposed to water elements. The CCD camera boasts a 130° viewing angle with 18 infra-reds and an IP69K rating. The system comes complete with all the wires, connectors and mounts you will need and comes with a full year warranty.
-
Product Dimensions
Camera: (with bracket) 3.25" (H) x 3" (L) x 1.5" (D)Monitor: 6.25" (H) x 7.75" (L) x 1" (D)
- Spec Sheet & Manual
-
Product Highlights
- 7" TFT LCD Quad Digital Color Display
- Completely Waterproof System - IP69K
- 130° Ultra Wide Viewing Angle
- 18 Infra-red Lights - 50ft of Night Vision
- Touch Screen Display
-
Product Details
This amazing waterproof backup camera system is complete with a 7" QUAD DIGITAL TFT-LCD monitor with a touch screen display which is completely waterproof with an IP69K rating and is suited for any application where the monitor is exposed to water elements. The CCD camera boasts a 130° viewing angle with 18 infra-reds and an IP69K rating. The system comes complete with all the wires, connectors and mounts you will need and comes with a full year warranty.
-
Product Dimensions
Camera: (with bracket) 3.25" (H) x 3" (L) x 1.5" (D)Monitor: 6.25" (H) x 7.75" (L) x 1" (D)
- Spec Sheet

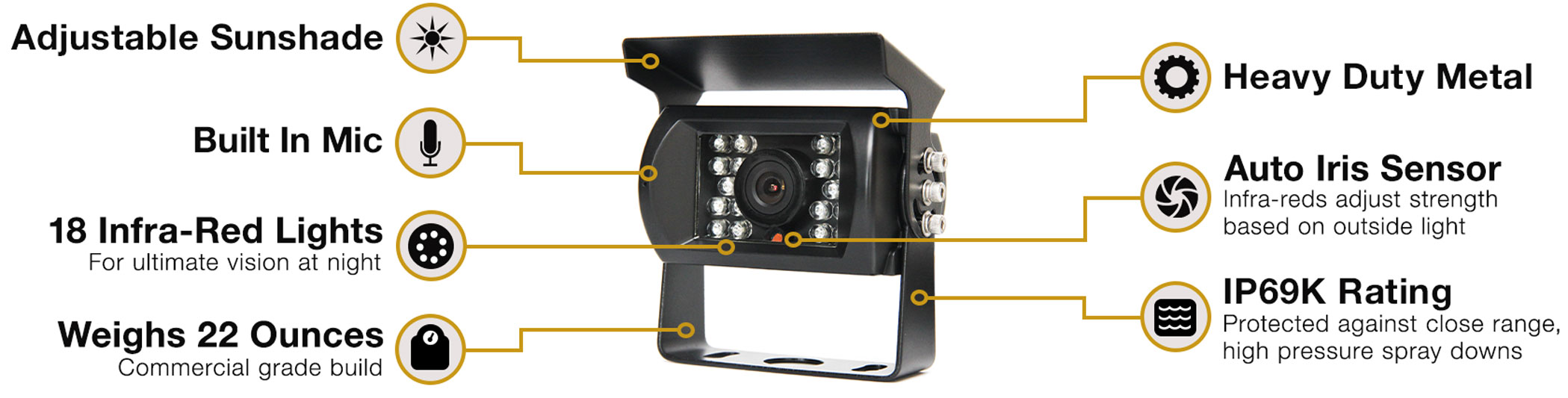

Backup Camera
This color CCD camera is built with heavy duty zinc metal which encases the 2.1 mm Sharp lens. It has a viewing angle
of 130 degrees and 600 TV lines, which means you get the best quality image with no blind spots. The 18 infra red lights allow
you to see up to 50 feet even in the darkest night and the foam around the lens guarantees no glare from these infra reds.
With an IP69K rating this camera will be fit to ride out any storm and boasts a 20G impact rating as well as
aircraft grade cable connectors.
A 3-D Look Inside
Take a closer look at the components that make this a powerful, durable, and reliable system.
Waterproof Quad View Monitor
Monitor Viewing Options
- 1 x Color CCD Weatherproof Camera with Infra-red Lights
- 1 x 7" Quad View Waterproof Digital TFT LCD Color Monitor
- 1 x U-Mount Bracket
- 1 x 66’ Extension Cable for Camera
- 1 x Remote Control
- 1 x Power Connection Wire
- 1 x Monitor Mount
- 1 x Double RCA + Power Converter (to Connect External Audio, Video and Power)
- 1 x Screw Kit for Installation
- Dimension7"
- TV SystemNTSC/ PAL
- Resolution800 x 3 (RGB) x 480
- Brightness400 cd/m²
- Contrast500 :1
- Waterproof RatingIP66
- Viewing AngleU: 50°/ D: 60°, R/L: 70°
- Aspect Ratio16:9
- Operating Temperature-10~+65ºC
- Storage Temperature-30~+80ºC
- Power SourceDC 9V -32V
- Power for CamerasMax. 4×300mA, 12V
- Dot Pitch0.192 (H) x 0.1805 (V)
- Video Inputs4 Video inputs; 1 DVD Input
- Audio Inputs4 audio inputs; 1 DVD input
- Video Outputs1 Rec Video Output
- Audio Output1 Live Audio Output
- Touch Screen Transmittance≥80%
- Screen Operation Pressure10~110g
- Screen Response Time<10ms
- Overall Dimensions 6.25" (H) x 7.75" (L) x 1" (D) <
- Camera1/3" Sharp® Color CCD
- Picture Elements410,000 pixels
- Gamma Correctionr=0.45 to 1.0
- Image Sensor620 TV lines
- PixelsPAL: 752 (H) x 582 (V) NTSC: 811 (H) x 507 (V)
- LensF=2.5mm
- View Angle130°
- Waterproof RatingIP69K
- Sync SystemInternal Synchronization
- Infra-red distance50 Feet (18 Infrared)
- Usable Illumination0 Lux (IR On)
- Power SourceDC 9V - 32V
- S/N RatioMore than 48dB
- Electronic Iris1/50, 160-1/100,000sec
- Video Output1Vp-p 75 Ω
- IR Switch ControlACDS Automatic Control
- Vibration and Shock Rating20G / 100G
- Operating Temperature-40°C ~ +70°C / RH 95% Max
- Storage Temperature-40°C ~ +85°C / RH 95% Max
- Net Weight22oz
- Overall Dimensions 3.25" (H) x 3" (L) x 1.5" (D)
Auto Iris Sensor |
Senses ambient light and automatically adjusts infra-red strength based on the ambient light. |
Display Contrast/Contrast Ratio |
The ratio of the brightest color (white) to the darkest color (black) that the system is capable of producing. A high contrast ratio is a desired aspect of any display. |
Display Format/Display Aspect Ratio |
The proportional comparison between a display’s width and height. It is expressed as two numbers separated by a colon. Common aspect ratios for displays are 4:3, 16:9, and 21:9. 16:9 is the international standard format for Full HD. |
Dot Pitch |
A dot pitch measures the maximum sharpness of a displayed image. Usually measured in millimeters (mm), a smaller number means a sharper image. |
Dot Resolution |
Dots are elements that make up an image. The higher the dot resolution, the higher quality the image. |
Event Mode |
Video recording mode which causes footage to be overwrite protected. Event mode is usually triggered with unusual vehicle movement or sudden impact. |
FPS |
Frames per second (FPS) is a measurement of how many unique consecutive images a camera can handle every second. |
G-Sensor |
Measures impact or sudden changes in velocities. Once the G-Sensor is activated, event mode automatically begins. |
Gamma Correction |
Corrects colors on your display. |
H.264 |
A style of video compression that allows for the greatest video quality with the smallest storage space. |
IP Rating |
The IP rating measures protection against solid and liquid objects. The larger the number, the higher the rating. An IP69K rating is the highest rating available, meaning that the system is completely weatherproof. |
Infra-Red Illuminator |
Infra-red lights are for night vision. Infra-reds emit light which the human eye cannot detect but cameras can. This greatly increases visibility in zero or low light conditions without an actual visible light source. Many of our cameras are equipped with infra-red lights. |
Loop Recording |
Video recording mode where after video storage is full, the camera will seamlessly loop over and begin recording over the oldest footage. |
Mobile DVR |
A recording device used to record video footage. DVR's are useful for fleet managers because they provide footage of accidents and information on vehicle's whereabouts and driving routes. |
Motion Detection |
A feature that automatically records before, during and after an impact while in parking mode. This way the driver has footage from an accident, even when they’re away from their car. |
Multiplexer |
The control unit or "brain" of the system. The multiplexer powers the system, receives all cameras feeds and sends them to the monitor. The multiplexer is connected straight to the fuse box and has a power capacity of 12-24 volts. |
NTSC |
National Television System Committee (NTSC) is a video system that transmits 30 frames per second (FPS). |
Necessary/Usable Illumination |
Measures how much ambient light (measure in lux) is needed to view an image. If your system has infra-red illuminators, 0 lux is needed. |
OEM |
Original Equipment Manufacturer (OEM) refers to equipment that was installed in a vehicle when it was manufactured. OEM style is an installation with a clean, factory look. |
PAL |
Phase Alternation by Line (PAL) is a video system that transmits 25 frames per second (FPS). |
Picture Elements |
Picture elements is another way to write pixel. A pixel is the smallest addressable element in digital imaging. The more pixels, the higher the quality image. |
Power Supply |
Most of our systems may be powered by 12 or 24 volt batteries, meaning they can be powered by the vehicle battery. DC stands for direct current. |
S/N Ratio (Signal-to-Noise Ratio) |
Compares the level of desired signal to the level of background noise. A ratio above 1:1 (greater than 0dB) indicates more signal than noise. |
Shock |
A physical or mechanical shock is a sudden acceleration caused by outside factors such as impact. It is usually measured in G units, which represent multiples of the acceleration of gravity. |
TFT LCD |
A high quality monitor used in appliances such as television sets, computer monitors and mobile phones. A TFT LCD monitor improves image qualities including contrast and sharpness. These displays only use up to half the power of a traditional monitor. |
TV Lines |
The maximum number of alternating light and dark vertical lines that can be resolved per picture height. The higher the number, the better the image quality |
Trigger |
An automatic action that occurs when a specific operation occurs. An example is a rear camera view displaying when a car is put into reverse. |
Vibration |
A mechanical phenomenon where fluctuations occur about an equilibrium point. It is usually measured in g units, which represent multiples of the acceleration of gravity. |
