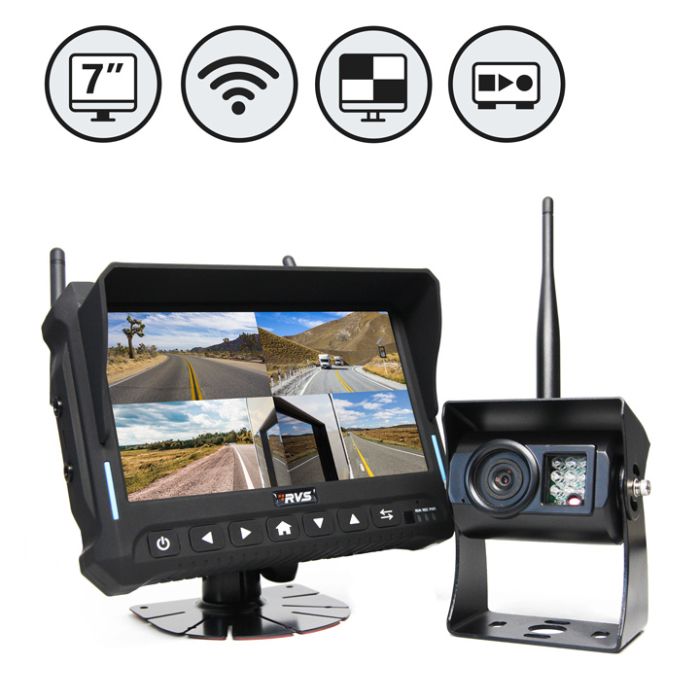

RVS-4CAM Wireless Backup Camera System | 7" Quad View Display with Built-in DVR
Product Highlights
  • Digital Wireless Connection - up to 70ft!
  • Quad Display - Can Connect and View 4 Cameras
  • Multiple Viewing Options - Single/Split Screen/Dual
  • Built In DVR - Records footage from all cameras connected
  • 9 Infra-red Lights - 30ft of night vision
Product Details

Added safety, multiple configurations and easy install is what this wireless backup camera system is all about. With a quad view display, the system can connect and view simultaneously up to four cameras and can even record video footage from each camera individually! This system has multiple display options including single, split screen and quad view. Footage records onto an SD card and loops over oldest recordings when the card gets full. Perfect for RV's, Trucks, Trailers and all commercial vehicles, this system is ahead of the game when it comes to vehicle safety. Note: Details may change based on item configuration.

Note: Aluminum causes interference to the wireless connectivity. If you have an aluminum trailer, it's recommended to go with a wired system like the RVS-770613-213

Note: Distance grid lines and audio do not work with the cigarette lighter plug configuration.

Note: SD card not included.
Note: Wireless Refers to connection between monitor and camera. Both individual components must be powered.

Product Dimensions

Camera: (with bracket) 3.86" (H) x 3.03" (L) x 1.77" (D)
Monitor: 5.51" (H) x 7.48" (L) x 2.5" (D)

Spec Sheet & Manual

  • 1 Year
  • Same Day
  • Buy & Try
    30 Day Guarantee
  • Lifetime
    Tech Support
  • Satisfaction is
    100% Guaranteed
  • Private and
    100% Secure
  • TS 16946:2009 &
    ISO 9001:2008 Certified
  • 26 Point
    Quality Assurance

Availability: In stock


item options

* Required Fields


Need this item fast? Orders placed before 2:00pm EST Mon-Thu (1:30pm EST Fri) will usually ship same day.


  • got Questions


130° Wireless Backup Camera RVS-DS1

Wireless Backup Camera

This CCD Color Camera is built with heavy duty zinc metal which encases the 2.1 mm Sharp® lens. It has a

viewing angle of 130° and 540 TV lines, which means you get the best quality image with no blind spots.

The 9 infra-red lights allow you to see up to 50 feet even in the darkest of night and the foam around the lens

guarantees no glare from these infra-reds. The camera boasts a 20G vibration rating and with an IP68 weatherproof

rating, it is fit to ride out any storm.

RVS-4CAM Wireless Backup Camera System | 7" Quad View Display with Built-in DVR

Wireless 7" Quad View Monitor with DVR

Our Wireless 7" TFT LCD Quad View Color Monitor comes with a Super Sharp Digital Display and a pixel

resolution of 800 X 480. The monitor comes with a built-in DVR allowing you to record all camera views and its

SD card slot can hold up to 128GB SD cards. The distance grid lines that come standard with this monitor are

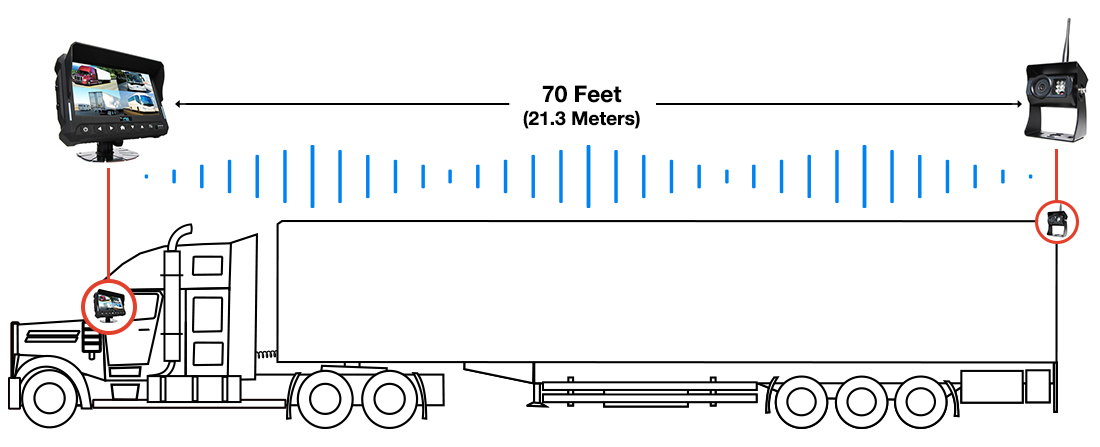

optional and adjustable. Boasting a wireless distance of 70 feet, this monitor can

also record each camera individually.

RVS-4CAM Wireless Backup Camera System | 7" Quad View Display with Built-in DVR

Monitor Viewing Options

Various Monitor Display Options

  • Customize your system with the item options above to see what's in the box

Monitor Specs
      • TypeTFT LCD
      • Screen Size7"
      • Pixel Resolution800 X 480
      • Wireless System2.4G Digital Wireless System
      • Automatic StartYes (Can Be Turned Off)
      • Display Brightness400cd/㎡
      • Video Input4 Channel
      • Audio Input1 Channel
      • Trigger Capacity3 Triggers
      • SD Card Capacity128GB
      • Vibration/Shock Rating20G/100G
      • Input VoltageDC 12V-36V
      • Frequency2.4GHz
      • Transport Power10mW
      • Transmission Distance70ft
      • Operating Temperature-40°C ~ +75° C
      • Video SystemAuto NTSC/PAL
      • Overall Dimensions 5.51" (H) x 7.48" (L) x 2.5" (D)
Backup Camera Specs
    • Camera1/4" Sharp® Color CCD
    • Picture Elements250,000 pixels
    • Gamma Correctionr=0.45 to 1.0
    • Image Sensor540 TV lines, PAL: 752 (H) x 582 (V), NTSC: 769 (H) x 494 (V)
    • Lens2.1mm
    • Waterproof RatingIP68
    • View Angle130°
    • Sync SystemInternal Synchronization
    • Infra-red distance50 Feet (9 Infrared)
    • Usable Illumination0 Lux (IR On)
    • Power SourceDC 12V/3A (+/- 10%)
    • S/N RatioMore than 48dB
    • Electronic Iris1/50, 160-1/100,000sec
    • Video Output1Vp.p 75ohm
    • IR Switch ControlACDS Automatic Control
    • Vibration and Shock Rating20G / 100G
    • Operating Temperature-30°C ~ +80°C / RH 95% Max
    • Storage Temperature-30°C ~ +60°C / RH 95% Max
    • Overall Dimensions 3.86" (H) x 3.03" (L) x 1.77" (D)

Questions on Wireless Backup Camera System | 7" Quad View Display with Built-in DVR

  • From William J Ozbat at 2016-06-08 8:05 PM
    • IS there a different way of mounting the screen? The picture makes it look like it needs to be screwed into the dash and U must avoid this as the new sierra has a soft leather like material wrap on the dash. Would a universal tablet mount from Ram Mount work?
    • A universal Ram Mount should work but I won't be able to guarantee it. We do however, have suction cup mounts that will definitely work for this monitor. You can see all our mounts here:
    • Do you find this question helpful?  Yes   No

Ask Your Own Question

Auto Iris Sensor

Senses ambient light and automatically adjusts infra-red strength based on the ambient light.

Display Contrast/Contrast Ratio

The ratio of the brightest color (white) to the darkest color (black) that the system is capable of producing. A high contrast ratio is a desired aspect of any display.

Display Format/Display Aspect Ratio

The proportional comparison between a display’s width and height. It is expressed as two numbers separated by a colon. Common aspect ratios for displays are 4:3, 16:9, and 21:9. 16:9 is the international standard format for Full HD.

Dot Pitch

A dot pitch measures the maximum sharpness of a displayed image. Usually measured in millimeters (mm), a smaller number means a sharper image.

Dot Resolution

Dots are elements that make up an image. The higher the dot resolution, the higher quality the image.

Event Mode

Video recording mode which causes footage to be overwrite protected. Event mode is usually triggered with unusual vehicle movement or sudden impact.


Frames per second (FPS) is a measurement of how many unique consecutive images a camera can handle every second.


Measures impact or sudden changes in velocities. Once the G-Sensor is activated, event mode automatically begins.

Gamma Correction

Corrects colors on your display.


A style of video compression that allows for the greatest video quality with the smallest storage space.

IP Rating

The IP rating measures protection against solid and liquid objects. The larger the number, the higher the rating. An IP69K rating is the highest rating available, meaning that the system is completely weatherproof.

Infra-Red Illuminator

Infra-red lights are for night vision. Infra-reds emit light which the human eye cannot detect but cameras can. This greatly increases visibility in zero or low light conditions without an actual visible light source. Many of our cameras are equipped with infra-red lights.

Loop Recording

Video recording mode where after video storage is full, the camera will seamlessly loop over and begin recording over the oldest footage.

Mobile DVR

A recording device used to record video footage. DVR's are useful for fleet managers because they provide footage of accidents and information on vehicle's whereabouts and driving routes.

Motion Detection

A feature that automatically records before, during and after an impact while in parking mode. This way the driver has footage from an accident, even when they’re away from their car.


The control unit or "brain" of the system. The multiplexer powers the system, receives all cameras feeds and sends them to the monitor. The multiplexer is connected straight to the fuse box and has a power capacity of 12-24 volts.


National Television System Committee (NTSC) is a video system that transmits 30 frames per second (FPS).

Necessary/Usable Illumination

Measures how much ambient light (measure in lux) is needed to view an image. If your system has infra-red illuminators, 0 lux is needed.


Original Equipment Manufacturer (OEM) refers to equipment that was installed in a vehicle when it was manufactured. OEM style is an installation with a clean, factory look.


Phase Alternation by Line (PAL) is a video system that transmits 25 frames per second (FPS).

Picture Elements

Picture elements is another way to write pixel. A pixel is the smallest addressable element in digital imaging. The more pixels, the higher the quality image.

Power Supply

Most of our systems may be powered by 12 or 24 volt batteries, meaning they can be powered by the vehicle battery. DC stands for direct current.

S/N Ratio (Signal-to-Noise Ratio)

Compares the level of desired signal to the level of background noise. A ratio above 1:1 (greater than 0dB) indicates more signal than noise.


A physical or mechanical shock is a sudden acceleration caused by outside factors such as impact. It is usually measured in G units, which represent multiples of the acceleration of gravity.


A high quality monitor used in appliances such as television sets, computer monitors and mobile phones. A TFT LCD monitor improves image qualities including contrast and sharpness. These displays only use up to half the power of a traditional monitor.

TV Lines

The maximum number of alternating light and dark vertical lines that can be resolved per picture height. The higher the number, the better the image quality


An automatic action that occurs when a specific operation occurs. An example is a rear camera view displaying when a car is put into reverse.


A mechanical phenomenon where fluctuations occur about an equilibrium point. It is usually measured in g units, which represent multiples of the acceleration of gravity.




GIVE OUR TECH TEAM A CALL AT (800) 764-1028.

Please Note: our tech team will help with questions regarding our systems but may not have the answer with regards to installation for your specific vehicle.
For vehicle specific questions, refer to your vehicle's user manual or contact your dealer.

Do you provide instruction manuals?
We do! Click here to view all of our product manuals.

Do the backup camera systems work at night?
Yes - most of our backup cameras come with infra-red lights and all come with excellent night vision.

Do the camera systems come with everything needed to install?
Yes, all components necessary for installation are included in our camera system packages.

Will I be able to install a camera system myself?
Many people do have the handiness to install our systems without having to hire assistance. Otherwise we recommend professional installation as they can guarantee that the system is installed correctly. Click here to search for a recommended installer in your area.

How do the systems receive power?
Most systems need just 12V power and they receive this either from the cigarette lighter or straight from the vehicle's fuse box.

Do the systems function properly in rain and bad weather?
All of our backup cameras are completely waterproof and will function perfectly in all weather conditions.

Can the camera systems remain on to view continuously while you drive?
Yes, they can. You can wire the systems to stay on as long as the vehicle is on or to come on only in reverse.

With a quad view system, do you need to connect all trigger wires to see all camera views?
No, trigger wires do not need to be powered to see camera views. Simply navigate to the preset quad view option from the monitor menu.

Can I customize a system?
Yes, most of our systems are customizable and all components in our wired systrems are interchangeable. Custom orders can be placed at (800) 764-1028.

What is the lead time on orders?
Most orders will ship on the same day. Our shipping cut-off time is 2:00pm EST Mon-Thurs and 1:30pm on Friday.

Does Rear View Safety offer pricing for dealers and fleets?
We most definitely do! You can apply for the dealer program here and fleet program here.

Does Rear View Safety only sell backup cameras?
No, we carry a multitude of vehicle safety solutions including Dash Cameras, Backup Sensors, Mobile DVR's and many other safety accessories.

Does Rear View Safety ship internationally?
Yes, we ship to any and every place in the world! (where shipping is available)

What methods of payment do you accept?
We accept all major credit cards as well as Paypal.

Does Rear View Safety offer a warranty?
Yes, all of our products come with a one year warranty. An extended two year warranty is also available for purchase.
